Building Material Galvanized Diamond U Lintel
Steel Lintel is a range of lightweight, easy to install, high load bearing, hot dipped galvanized ribbed steel lintels for use with brick construction in the building industry; specifically designed to support brickwork above window and door openings in replacement to conventional concrete lintel.
1. Equipment capabilities
It can according to the need to produce the steel width (60mm≤§≤860mm), many kinds of specification electric cable bridges and other structure product.
Product speed by punching: 2.55m/min
Continuous rollforming speed: 1015m/min
Material thickness: 1~2mm
Material require: Q235 cold roll steel
Production line has automatic and manual two operating mode, may realize the linkage and the partition revolution work.
Produce condition
capability: about 71.5kw
gas fountain: 0.9 cube/min
Production land area: 33m*3m
2. Main composition of machine
This unit consists of the decoiler, ML-900 flatting, 200 punch, die, servo feeding, guider, main roll forming machine, follow cutting, cut-to-length part, recoiler, electrical control cabinet; etc.
3. Each part major technical parameters
3.1 Drive decoiler
Material width:860mm
Material weight:6000kg
Material inner diameter:508mm
Material outer diameter:1200mm
Drive power: electromotor and speed reducer integration, 4KW frequency conversion electromotor
Frame type: cantalever inner support, manual handle afterbody, pneumatic press cantalever.
4. Roll Forming Machine Product Feature:
They are all widely used in steel structure industry, decorating and fitting material industry,
physical
distribution and supermarket shelf industry, transportation industry, wiring industry, electrical
equipment industry, elevator industry and various projects using pipe industry.

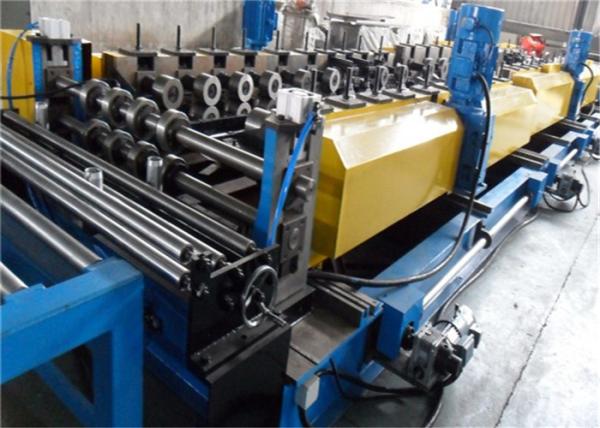

Main roll forming machine
Type: GY180(Extra wide)
Rack structure:Dragon Gate type memorial arch frame
forming frame: 22 sets
Forming variety: bridge frame
material max width:860mm
material max thickness:≤4.0mm
forming width: 75-600mm
forming height: 50-100mm
The diameter of the roller axis: 85mm
Roll mould material: Gcr15,quenching treatment:HRC58-62°
Drive type:30kw frequency conversion electromotor, ZQ500 Main speed reducer
Autocephaly distribute gear case
3.8 Electrical control
3.8.1 Main operation control cubicle
Amount: 1 set
Frequency conversion: 3sets(in main control cubicle, control decoiler, flatting and roll forming machine)
PLC control: 1 set
8 inch liquid crystal touchscreens
All electrical element is the Mitsubishi original installation brand
3.9.2 Assistant control cubicle
Amount: 3 sets (follow decoiler, flatting, roll forming machine)
Control styp: manual handle
5. Machine Parameter
| NO. |
Project |
Unit |
Parameter |
Remark |
1 |
Material |
Type |
High strength steel |
|
|
| Strength of material sheet |
Map |
≥350 |
|
| Thickness of material sheet |
mm |
1.2~4.0 |
|
| 2 |
Size of production |
mm |
Reference the picture |
|
| 3 |
Production speed |
m/min |
Punching speed 4m/min
Forming speed 10m/min |
|
| 4 |
Material of roller
|
|
GCr15 quenching treatment |
|
| 5 |
Drive type |
|
Gear |
|
| 6 |
Power |
kw |
About 75 |
|
| 7 |
Electric control system |
|
PLC variable frequency control |
|
| 8 |
Dimensions(Length*width*height) |
m |
55X4X3.9 |
|
