1. Technical parameters of machine
1.1 Width of material sheet: 70~300mm
1.2 Thickness of material sheet: 1.5~2.5mm
1.3 Material: MS,GI
1.4 Length of the work piece:0—6000 mm
1.5 Weight of equipment:30T
1.6 Speed of production line:0-5m/min
1.7 Total Power:39KW
Technical Data:
| 1 | Processing Material | PPGI;GI |
| 2 | Processing Thickness | 0.3-0.8mm |
| 3 | Material of Roller | 45#steel |
| 4 | Material of Shafts | 45#steel |
| 5 | Total Power | 8kw |
| 6 | Material of Cutting Blades | Cr12 |
| 7 | Brand of PLC | Delta/Mitsubishi/Siemens |
| 8 | Production Speed | 15-20m/min |
| 9 | Brand of Frequency Converter | Schneider |
| 10 | Transmission Type | Chain transmission Decelerating motor |
| 11 | Voltage | 380V 50HZ or as your requirement |
| 12 | Cutting Type | Mold Cutting |
2. General structure of equipment
2.1 Area of production line:length 32m x width3.0m x height 3.5m
2.2 Feeding direction: from left side to right side
2.3 Power: 220V, 60Hz, 3 phase
2.4 Pneumatic station pressure 0- 0.7MPa.,0.5m3/min.
2.5 Hydraulic oil: 46# Hydraulic oil
2.6 Gear oil: 18# gear oil
2.7 Equipment Color: Main blue,the drive and safeguard takes red or
yellow(warning color)

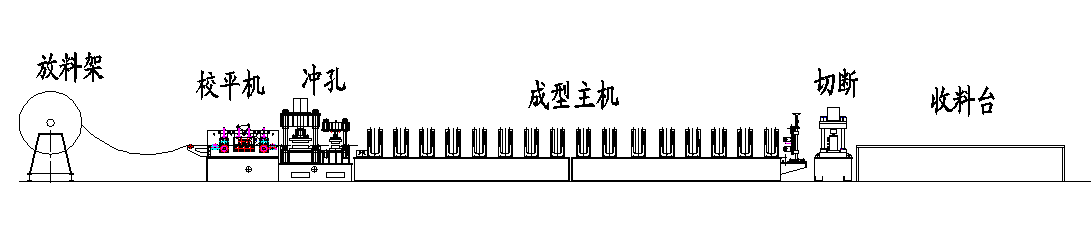

3. Cable Tray Cover Machine Working Craft
Decoiler---Leveler---Punching---Roll Forming---Cutting--Collection

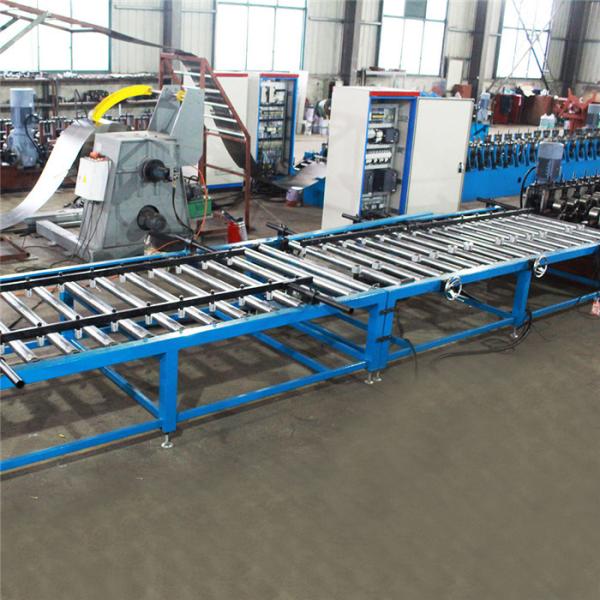

4. Cable Tray Cover Machine Component
| NO. | Item | Type and size | Qty. | Power (KW) | Remark |
| 1 | De-coiler | MT-300 | 1 set | | |
| 2 | Leveler | HS-300 | 1 set | 3 | |
| 3 | Servo feeder | NCF300 | 1 set | 2.2 | |
| 4 | Hydraulic punching | | 1 set | 7.5 | |
| 5 | Hydraulic punching mould | | 2 sets | | |
| 6 | Forming machine | GY160 type(by chain) | 1 set | 22 | |
| 7 | Hydraulic cutting | YQ300X1.2Z | 1 set | 5.5 | |
| 8 | Run-out table | SL-400X4000 | 1 set | | |
| 9 | PLC | | 1 set | | |
5. PLC Control System
a. Full line is controlled by PLC control system with touch screen operation to achieve the human and PLC interactive. The operator can monitor the setting program (programmable control) and modify the parameter to control the line. Also can check the running status, parameter and error indication etc...
b. Operation type: manual /auto two type switch. In manual position: can run
the each part of the machine. In auto position: can run the full line. The
emergency stop ensures the safe of the equipment and operator.
c. Machine side is equipped with the manual operation control panel for
convenient worker to operate;
5. Cable Tay Cover
BOSJ can design cable tray cover according to your requirment.
Or you can offer us your sample sizes or pictures,then BOSJ team will offer you more details.
